ULISSE CANNON ACOMIZER

400 - 600 L

SAMSUNG CSC

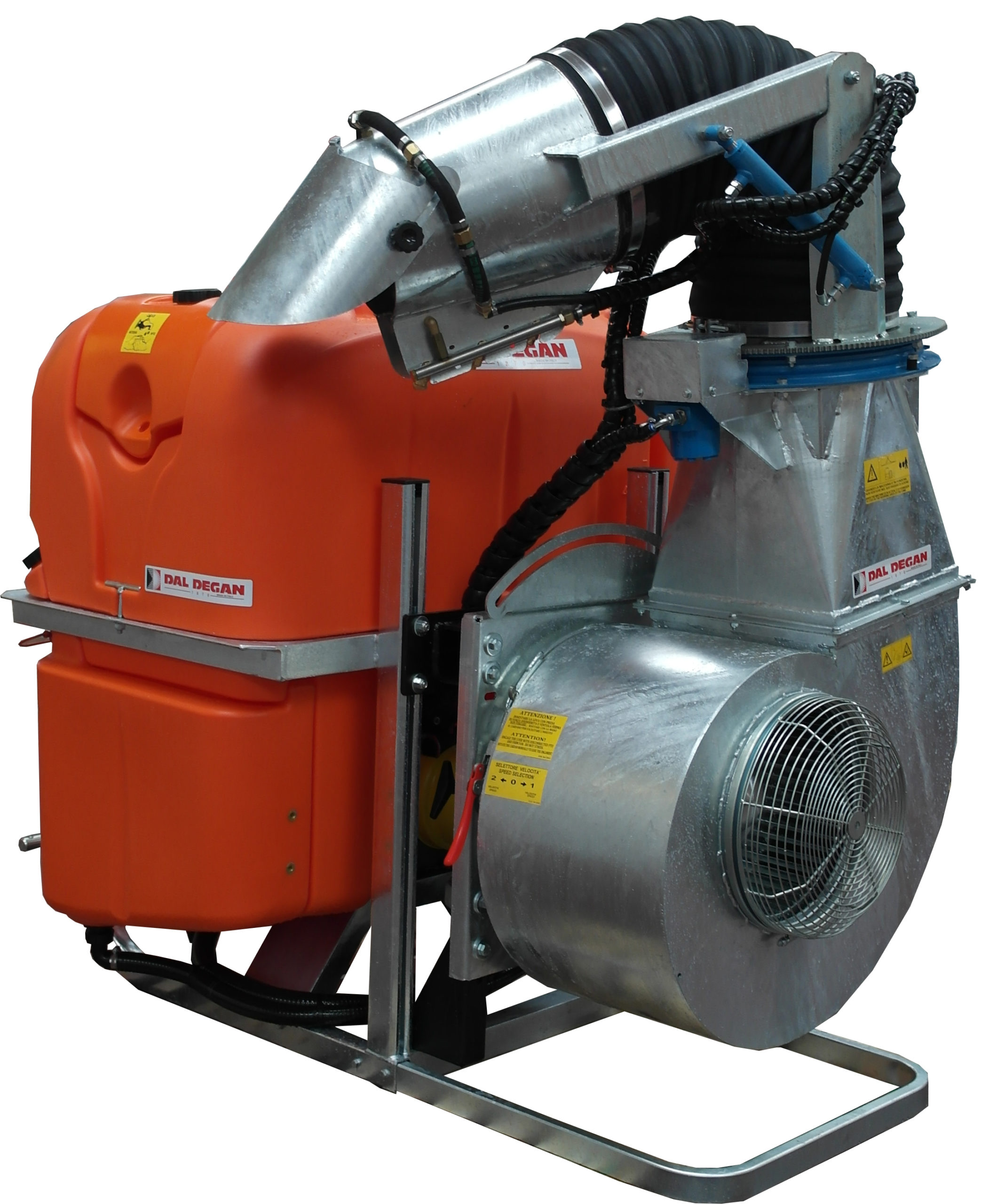

The mounted nebulizer with cannon allows fast treatments on large surfaces with excellent coverage results. The frame is in hot-dip galvanized steel section on which the totally empty polyethylene tank, circuit washing tank, hand washing tank and COMET membrane pump are mounted. The fan unit has a standard diameter of 450 mm. The nozzle holder pipes are made of stainless steel on which the anti-drop brass jets are fixed. The conveyor has two or three movements respectively to act on the rotation of the cannon head or on the inclination of the conveyor. The cannon terminal is supported by a flap to direct the flow.

FIELDS OF APPLICATION

Berry crops
Greenhouse crops
Olive groves
Tall plants
Palms

TECHNICAL DATA

TANK MATERIAL POLYETHYLENE
PUMP MEMBRANE
PERFORMANCES 88-115 L / min
CONVEYOR DOUBLE Ø 450
MINIMUM POWER 50-60 HP
FRAME AND CONVEYOR GALVANIZED STEEL
CONVEYOR MOBILE 2/3 MOVEMENT

WHY TO CHOOSE ULISSE

Latest generation technologies
Localized chemicals
Reduced noise
High efficiency variable pitch impeller / propeller
Electronically adjustable mobile conveyor
Suitable for confined spaces
High quality of materials
Wide choice of options

RECOMMENDED ACCESSORIES

THE COMPLETE LINE
