Categories: Trailed tractor atomizers, Vineyard, orchard, olive grove, and specialized tree crop line

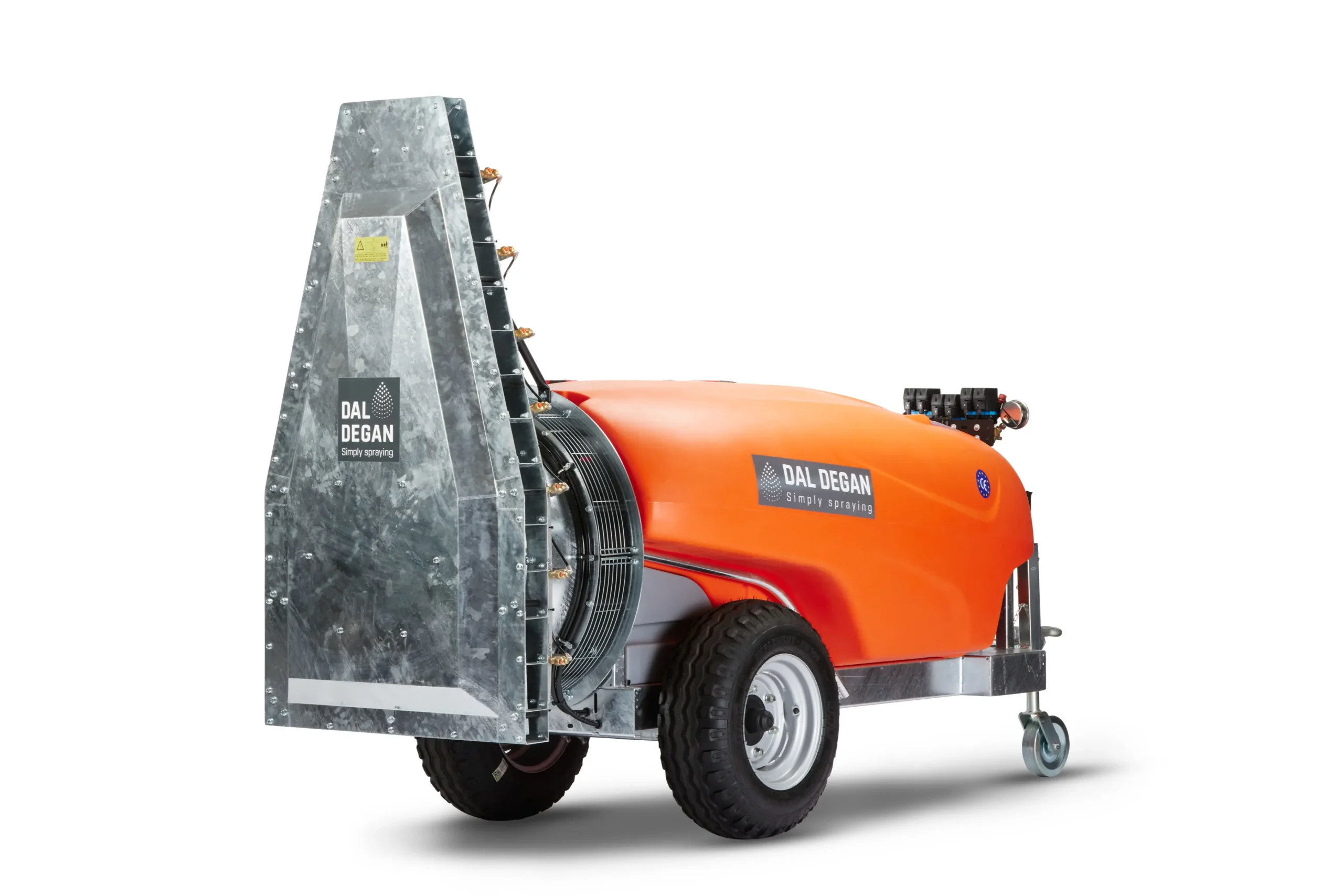

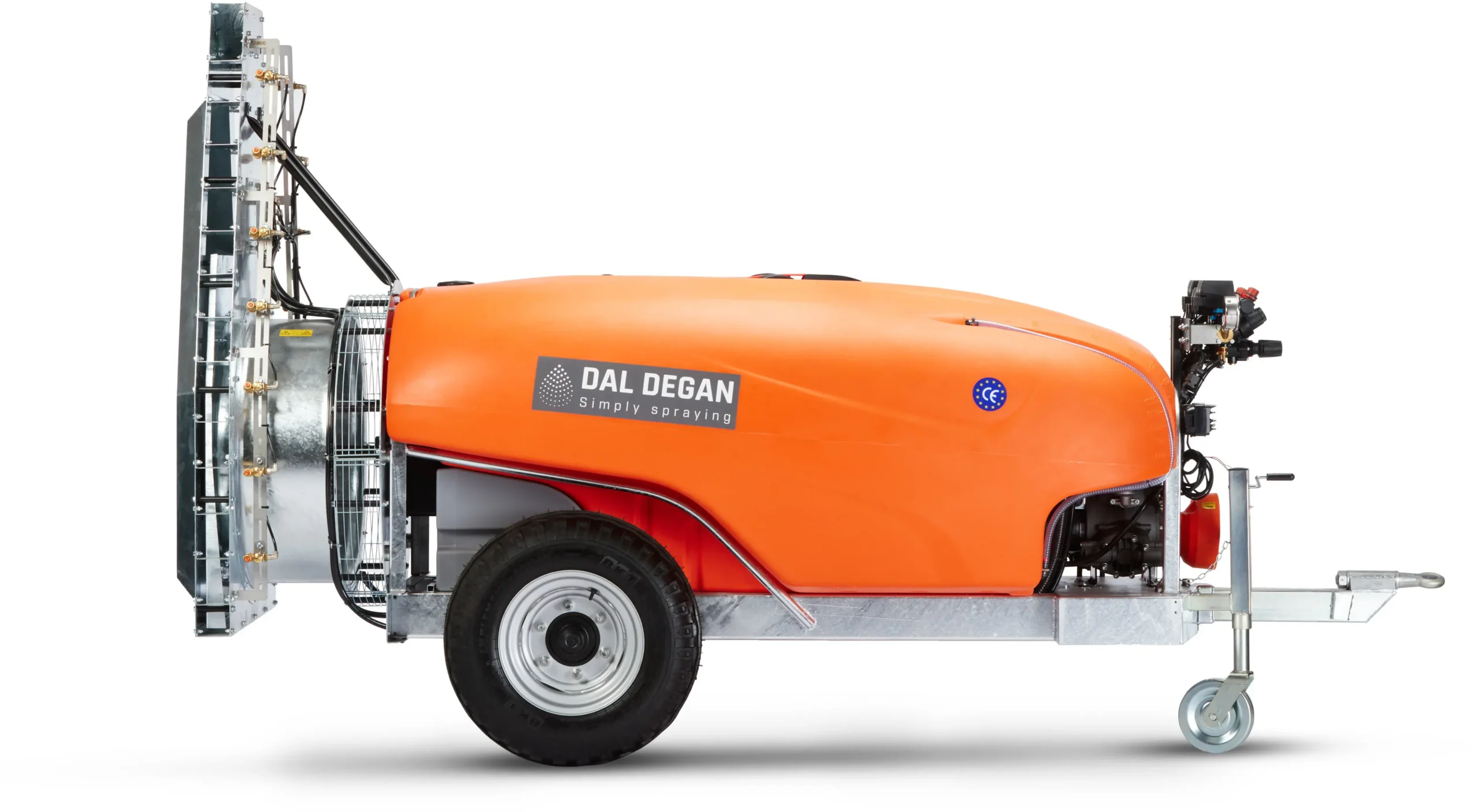

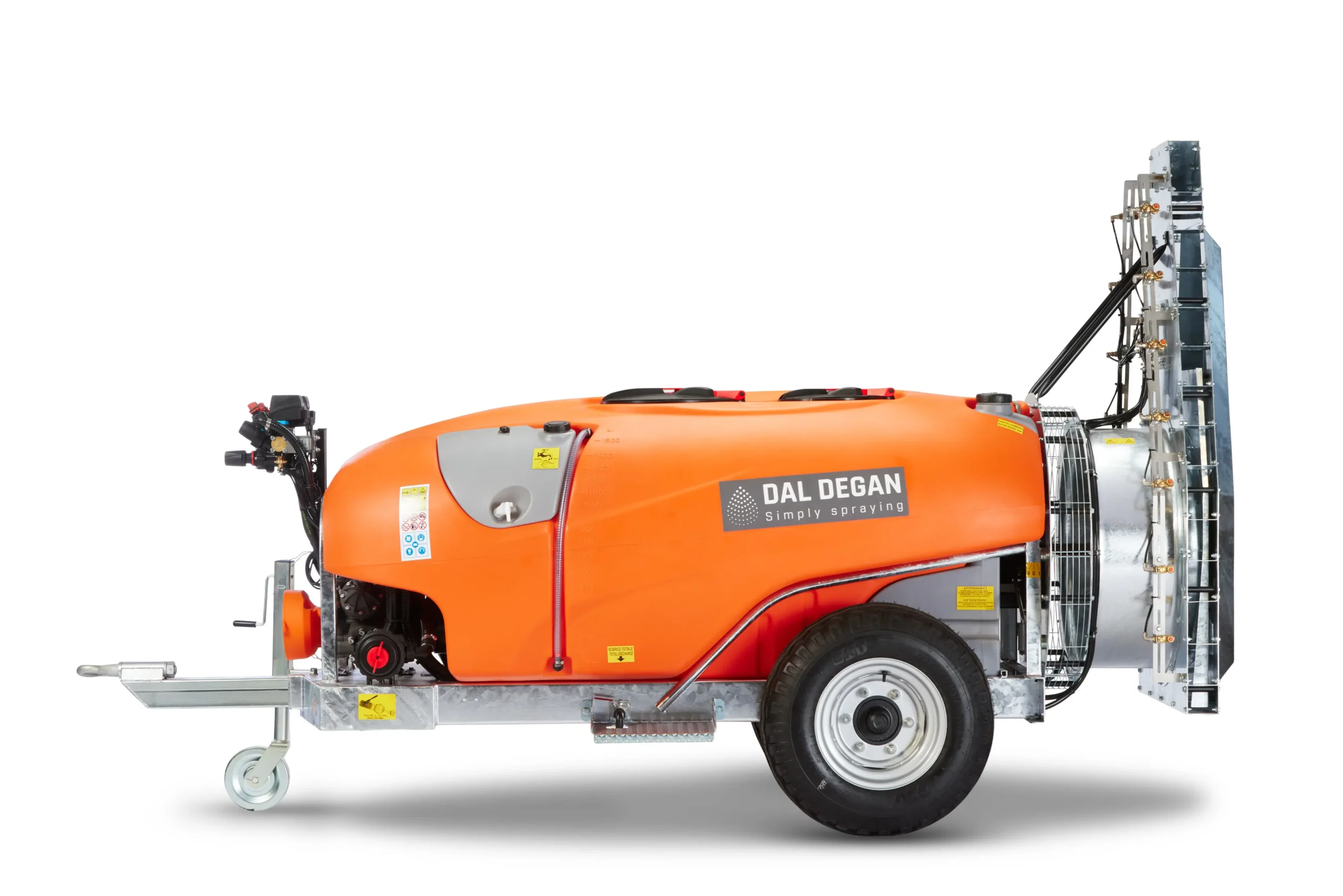

TRAILED TOWER ATOMIZER WITH AXIAL FAN — 600, 1,000, 1,500, 2,000 LITERS

Iridium TR

The Iridium TR is the Dal Degan trailed atomizer dedicated to professional farms requiring high operational autonomy for crop protection in vineyards, orchards, and olive groves. Available with 600, 1,000, 1,500, and 2,000-liter tanks, it is designed to work large areas while reducing downtime for refilling. Like the entire Iridium range, it uses a high fluid-dynamic efficiency tower developed to maintain constant air flow pressure, speed, and volume up to the highest areas of the vegetation. This ensures uniform product distribution and effective coverage even in the densest canopies. Ventilation is provided by a front-suction axial fan with adjustable helical blades in antibacterial nylon-glass. This configuration improves aerodynamic efficiency, reduces noise, and limits the transfer of pathogens between different plots, a feature particularly valued by contractors. The two-speed plus neutral gearbox allows the air volume to be adapted to different operating conditions, reducing fuel consumption and optimizing performance. The distribution system is equipped with double brass nozzle holders, ATR nozzles, and an anti-drip system, for precise misting and a significant reduction in waste during maneuvers. A distinctive feature of the trailed version is the width-adjustable axle, which allows the track width to be adapted to the tractor’s tracks, limiting soil compaction and promoting more sustainable agronomic management. The robust hot-dip galvanized frame and high-resistance polyethylene tank complete a machine designed to ensure reliability and durability. The Iridium TR is the ideal choice for those seeking a professional trailed atomizer for vineyards and orchards with high autonomy, maximum distribution quality, and low operating costs.

Fields of Application

Large-scale professional vineyards with trellis, espalier, and overhead systems
Large-scale commercial orchards
Professional olive groves with medium and wide planting distances
Specialized commercial-scale tree crops
Professional contractors working for various client farms
Structured farms focused on reducing fuel consumption
Sustainable agriculture and conservative soil management (adjustable axle)
Treatments on high areas of orchards thanks to the tower with channeling

Technical Data

TYPE	TRAILED TOWER SPRAYER
TANK CAPACITY	600 – 1,000 – 1,500 – 2,000 L

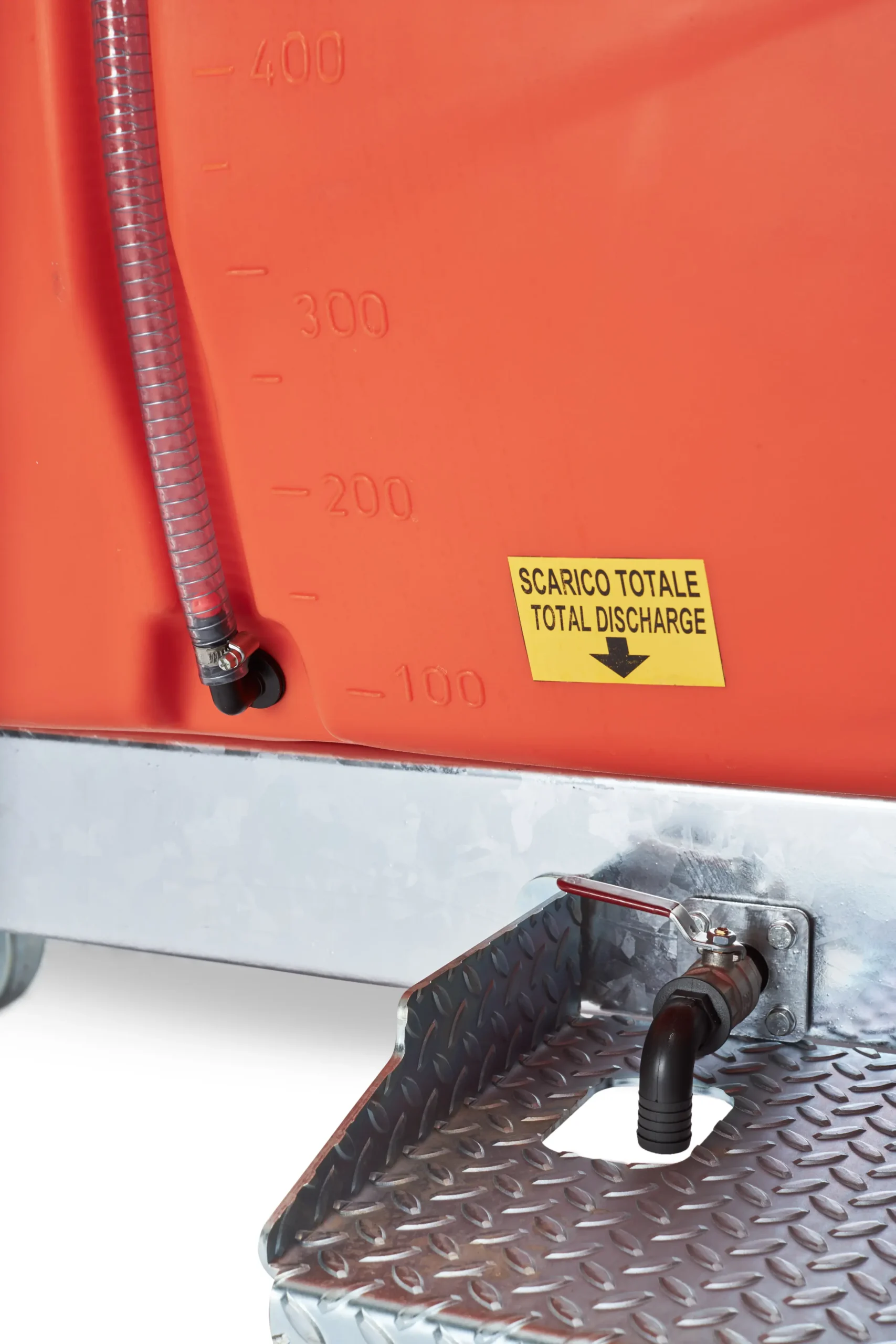

TANK MATERIAL	COMPACT AND RESISTANT POLYETHYLENE
FRAME	PROPERLY SIZED GALVANIZED STEEL
VENTILATION SYSTEM	AXIAL IMPELLER WITH FRONT INTAKE

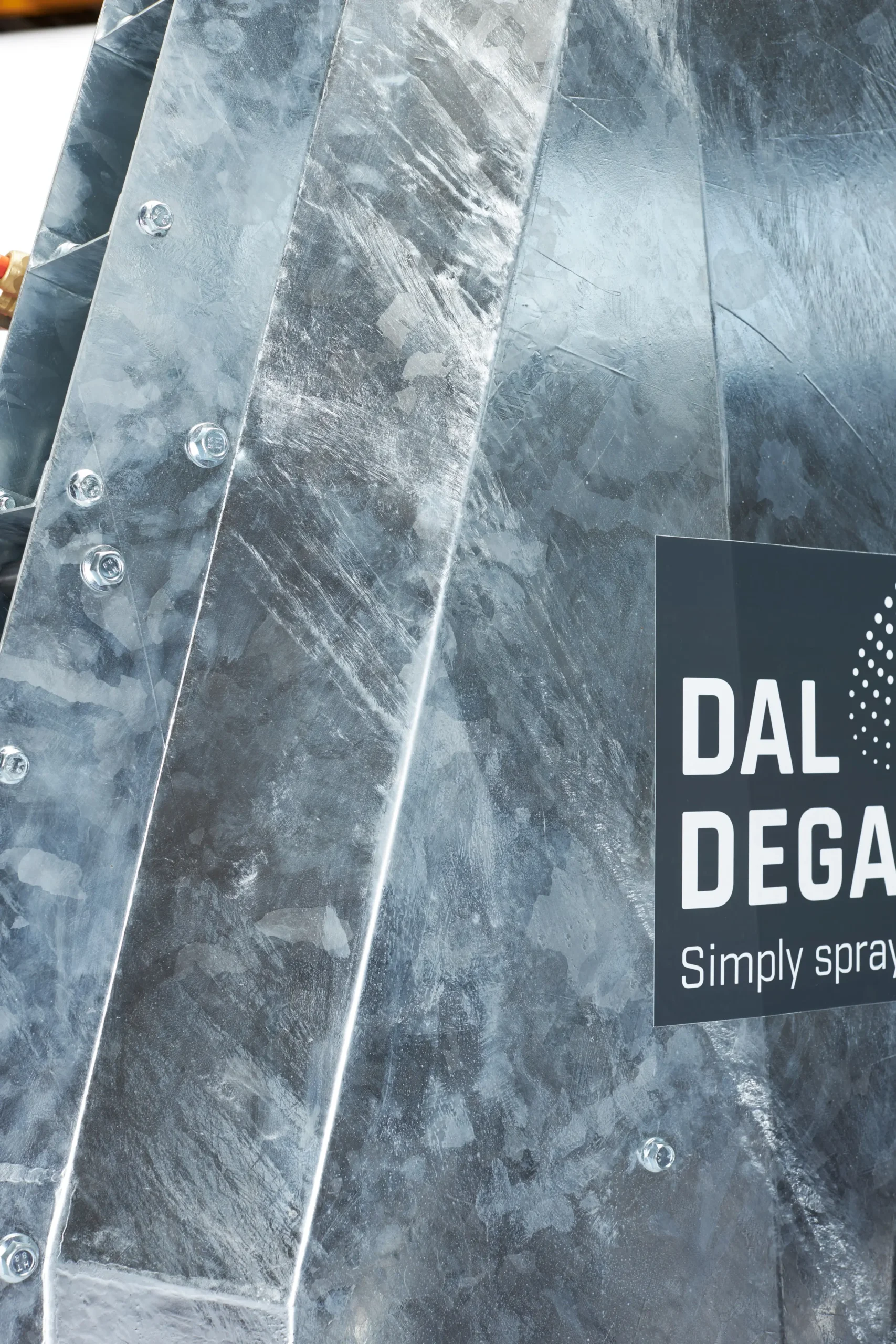

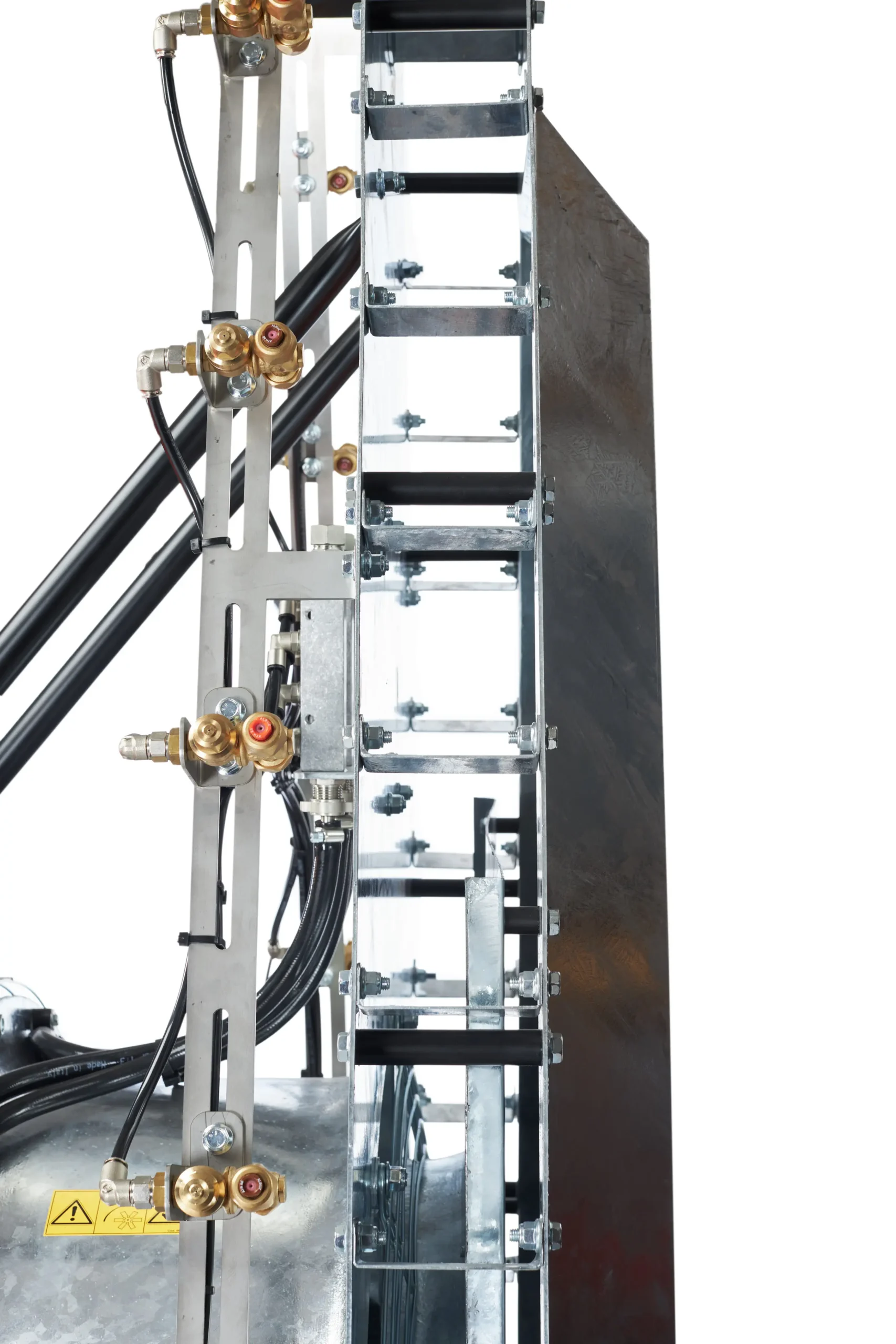

TOWER	WITH CHANNELING SYSTEM AND UPPER FLOW PRESERVATION
AVAILABLE FAN DIAMETERS	600 – 700 – 800 – 900 mm
FAN WIDTH	50 – 60 – 70 – 80 – 90 cm (depending on configuration)
BLADES	HELICAL NYLON-GLASS WITH ANTIBACTERIAL COMPOUND, ADJUSTABLE
GEARBOX	2-SPEED + NEUTRAL, WITH CUSTOMIZED GEAR RATIOS

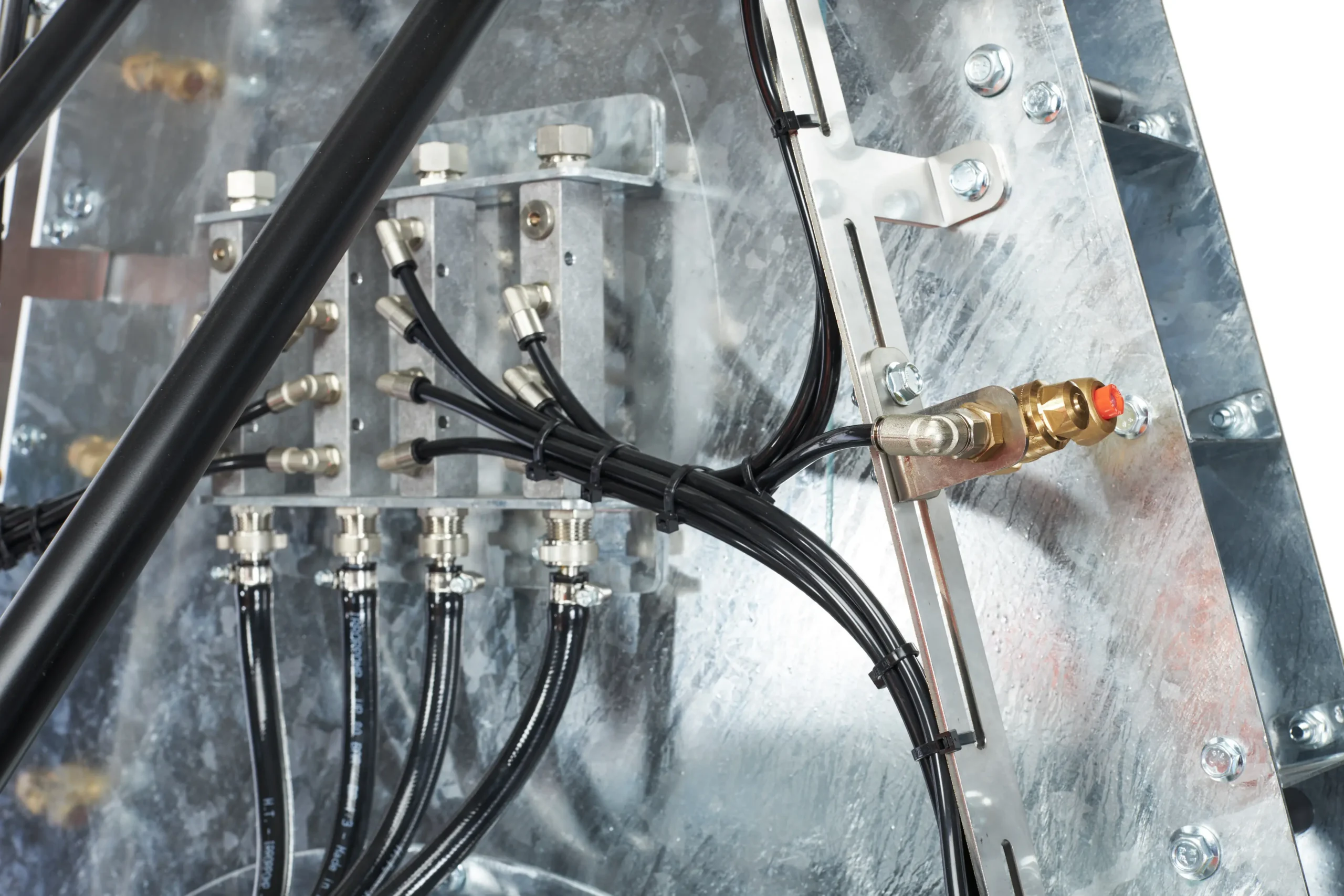

NOZZLE HOLDERS	DOUBLE BRASS, OFF-FLOW
ANTI-DRIP DIAPHRAGM	YES, STANDARD
NOZZLE TYPE	ATR (TURBULENCE), WITH FINE ADJUSTMENT
WHEEL AXLE	WIDTH-ADJUSTABLE TO FIT EXISTING TRACKS
FAN RPM	FROM 1,830 TO 2,550 rpm (depending on configuration)
EMPTY WEIGHT	FROM 300 TO 700 kg (depending on configuration)
LENGTH	FROM 2,450 TO 3,300 mm
WIDTH	FROM 1,300 TO 1,670 mm

Benefits

Four capacities available: 600, 1,000, 1,500, or 2,000 liters
Maximum work autonomy for extended shifts without refills
Tower with flow channeling: perfect spraying even in high areas
Helical antibacterial nylon-glass blades: does not transmit diseases between plants
Reduced noise thanks to the helical geometry of the blades
2-speed + neutral gearbox with customized ratios
Lower power consumption: lower tractor fuel consumption
Double brass nozzles outside the airflow with ATR tips
Standard anti-drip diaphragm: no waste during maneuvers
Adjustable wheel axle: adaptation to existing ground tracks
Agronomic advantage: no compaction of new soil strips
Galvanized steel frame: corrosion resistance and multi-year durability
Five fan diameters (600-900 mm) for crop-specific sizing
Italian aesthetics and Dal Degan design based on 150 years of experience
