Category: Motor pumps

PROFESSIONAL THREE-DIAPHRAGM ELECTRIC MOTOR PUMP FOR SPRAYING AND WEEDING

APS 31 Electric

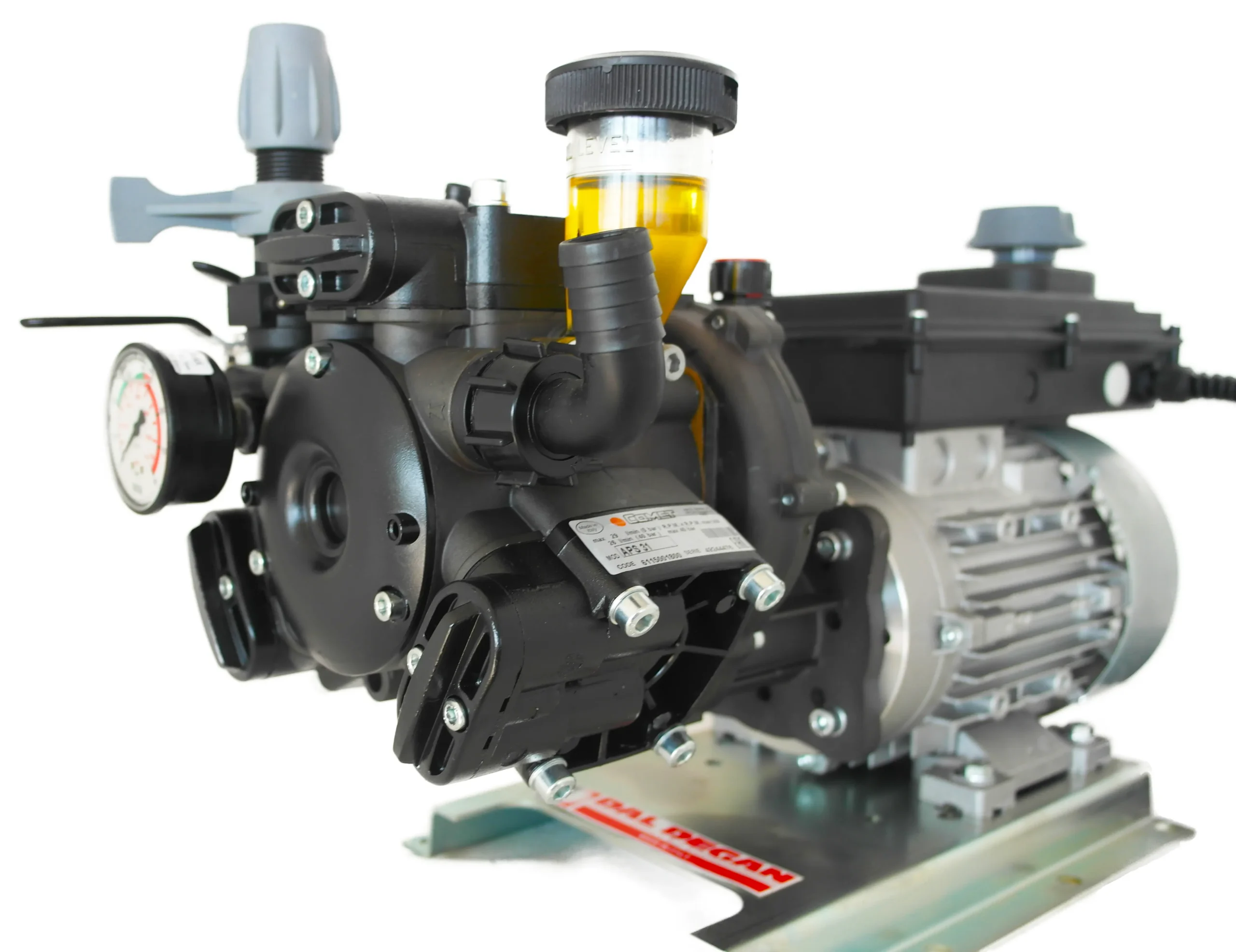

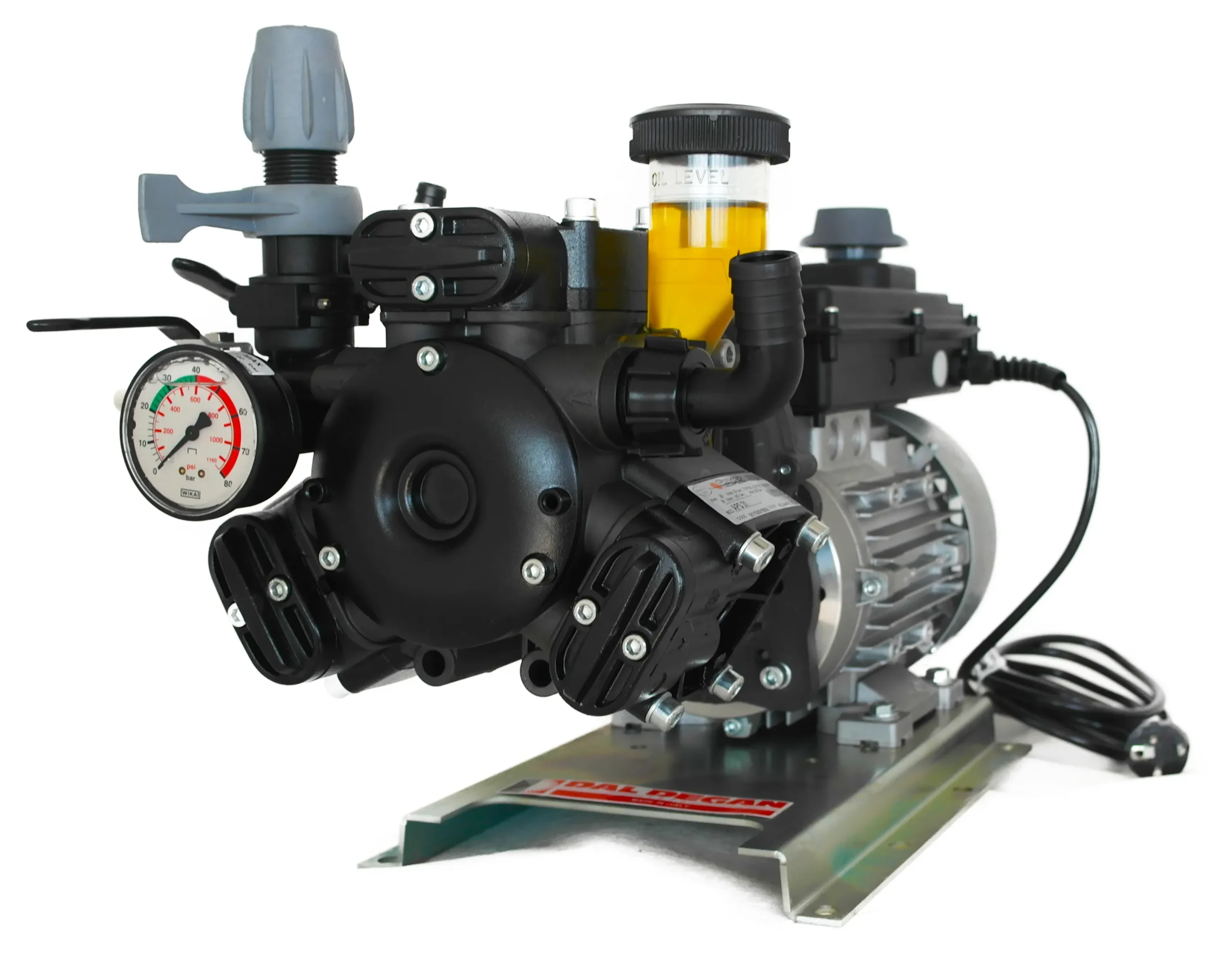

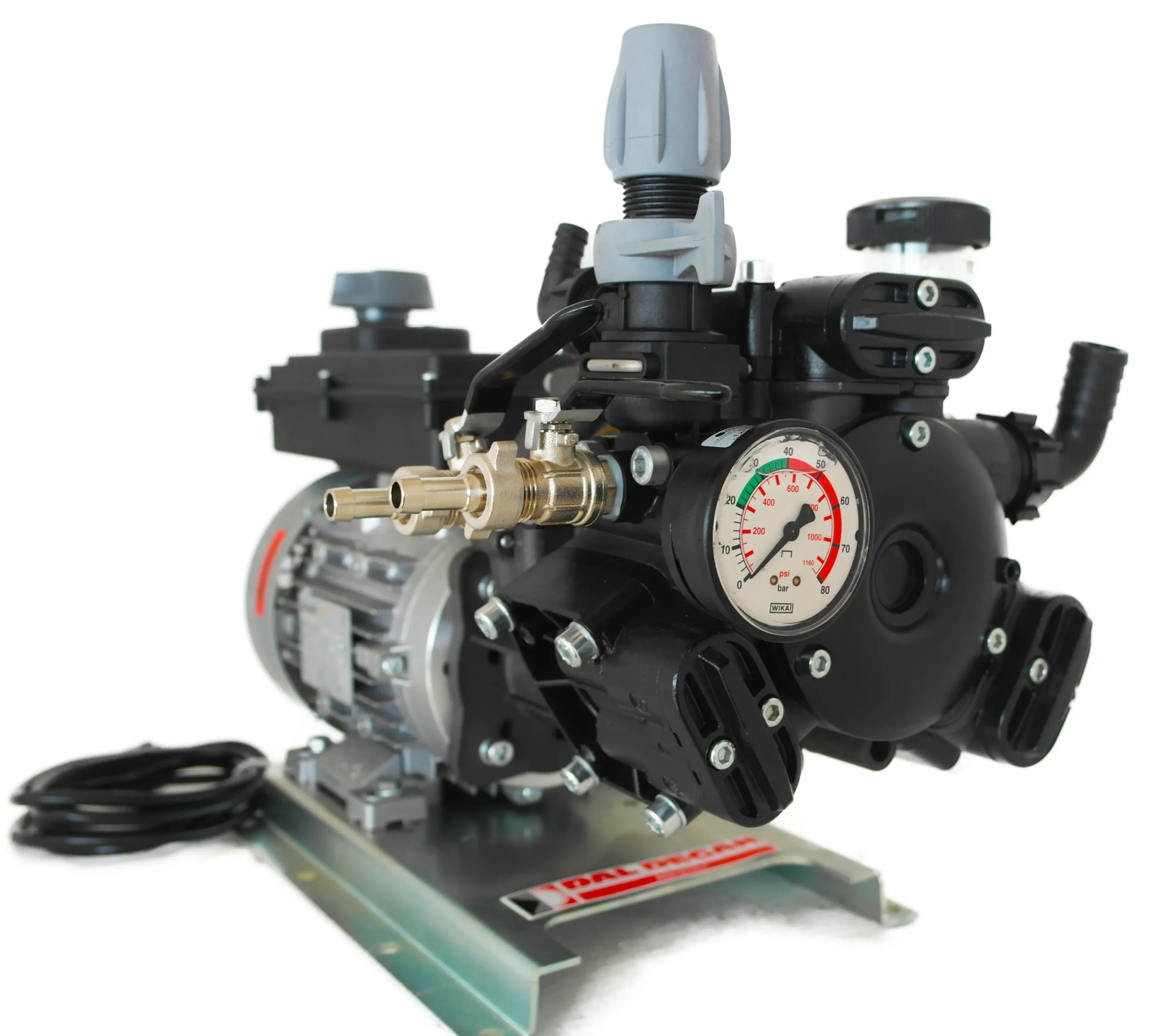

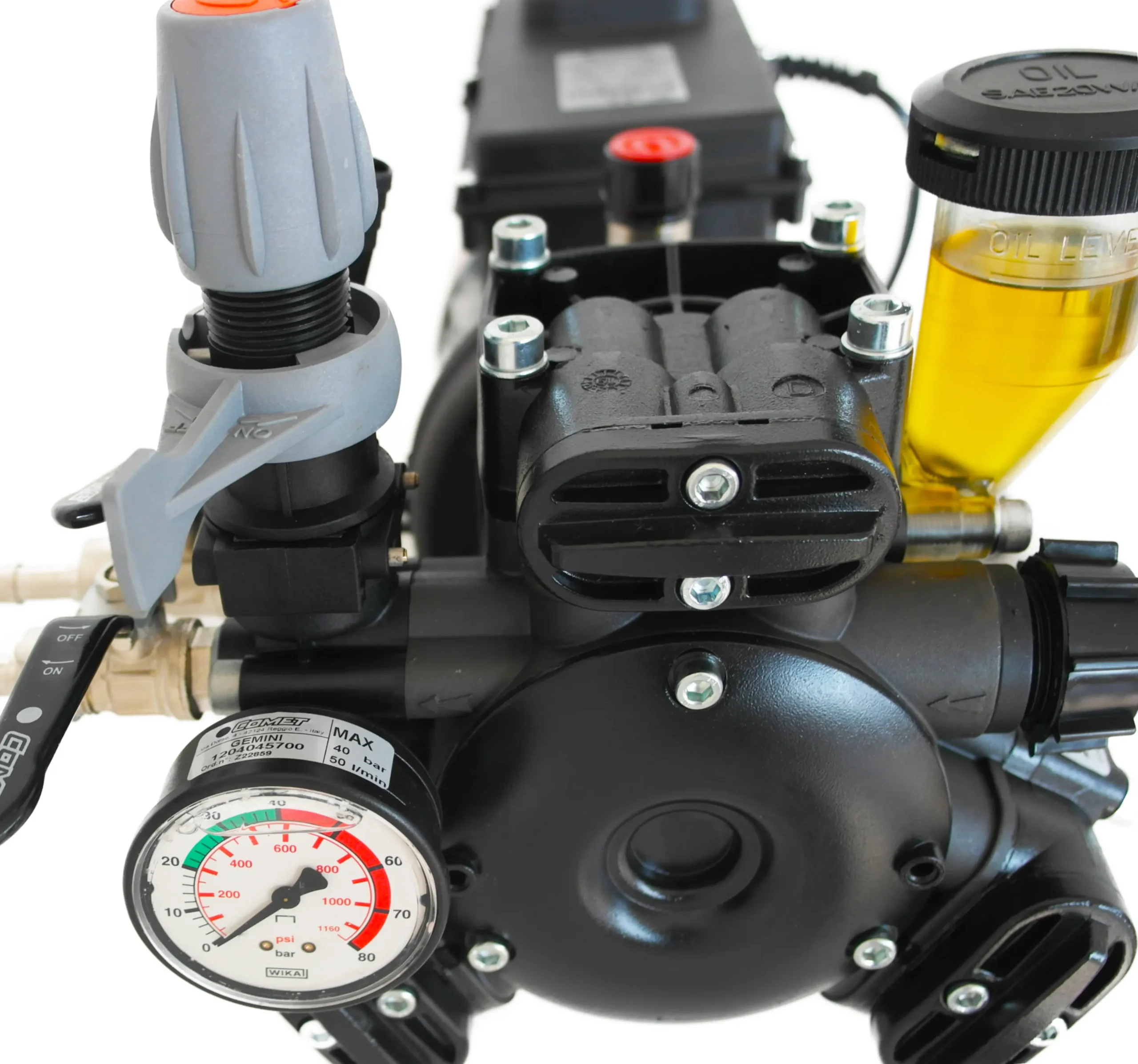

APS 31 Electric is the professional Dal Degan electric motor pump equipped with a three-diaphragm Comet APS 31 pump and a 230 V, 2 HP single-phase electric motor, designed for installation on sprayer trolleys, wheelbarrows, mobile units, pick-up beds, mounted sprayers, and fixed systems. Thanks to its high reliability, maximum pressure of 30 bar, and flow rate of 25 liters per minute, it represents an ideal solution for agricultural, nursery, horticultural, sanitization, and professional landscaping applications. The Comet APS 31 pump features a three-diaphragm configuration, a technology that ensures more uniform delivery compared to traditional twin-diaphragm pumps, reducing residual pulsations and better distributing the workload on internal components. This results in greater operating comfort, less diaphragm wear, quieter operation, and a longer overall lifespan for the pumping unit. The suction and delivery valves are easy to inspect and positioned on the delivery side to simplify routine maintenance. The valve seats and plates are made of stainless steel, ensuring wear resistance and compatibility with the main products used in professional spraying. The pump is connected to the motor via a professional oil-bath gearbox, a construction solution that ensures continuous transmission lubrication, reduces mechanical stress, and helps increase the service life of the entire motor pump unit. The assembly is installed on a sturdy metal base with multiple pre-drilled holes for integration into different types of machines and systems. The 2 HP (2,237 W) single-phase electric motor offers numerous advantages over traditional internal combustion engines: instant start, no fuel required, lower operating costs, reduced noise, simplified maintenance, and zero emissions. For applications in greenhouses, nurseries, warehouses, agricultural facilities, and semi-fixed systems, the electric solution is often the most efficient and economical choice. One of the most appreciated features of the APS 31 Electric is its high versatility. Its performance allows it to simultaneously power:

up to 3 manual lever or knob lances;
up to 2 professional spray guns;
one long-range Mitra spray lance;
a pair of side booms with 3+3 butterfly nozzle configuration for row treatments.

This flexibility makes the unit particularly suitable for vineyards, orchards, greenhouses, nurseries, professional phytosanitary treatments, urban sanitization, and fixed liquid distribution systems. The pressure control unit allows for precise adjustment from 0 to 30 bar. The two standard outlets allow for immediate equipment connection, while the provision for a third outlet further increases operational versatility. The bypass fitting returns unused liquid to the tank, contributing to continuous product mixing and keeping the solution homogeneous during prolonged treatments. APS 31 Electric uses a pump manufactured by Comet S.p.A., an internationally recognized Italian company known for the reliability of its diaphragm pumps and the wide availability of spare parts and technical assistance in the European market.

Fields of Application

Professional spraying and weeding treatments
Small and medium-sized crops, parks, gardens, vegetable patches, greenhouses
Advanced hobbyist and semi-professional vineyards, orchards, and olive groves
Distribution of detergents, paints and products in aqueous solution
Setup of wheelbarrows, spray carts and wheeled sprayers
Assembly of units for pick-up beds and motor-tricycles
Fixed systems for nurseries, greenhouses, and agricultural warehouses
Professional urban pest control services
Row treatments with side booms with butterfly jets
Simultaneous work of two or three operators with multiple lances

Technical Data

TYPE	PROFESSIONAL ELECTRIC MOTOR PUMP
PUMP TYPE	DIAPHRAGM
NUMBER OF DIAPHRAGMS	3
FLOW RATE	25 L/min
MAXIMUM PRESSURE	30 BAR (adjustable from 0 to 30 bar)
SUCTION / DELIVERY VALVES	STAINLESS STEEL SEAT AND DISC
VALVE INSPECTABILITY	QUICK, ALL POSITIONED ON DELIVERY SIDE
MOTOR TYPE	SINGLE-PHASE 230V INDUCTION ELECTRIC MOTOR
MOTOR POWER	2 HP / 2,237 W

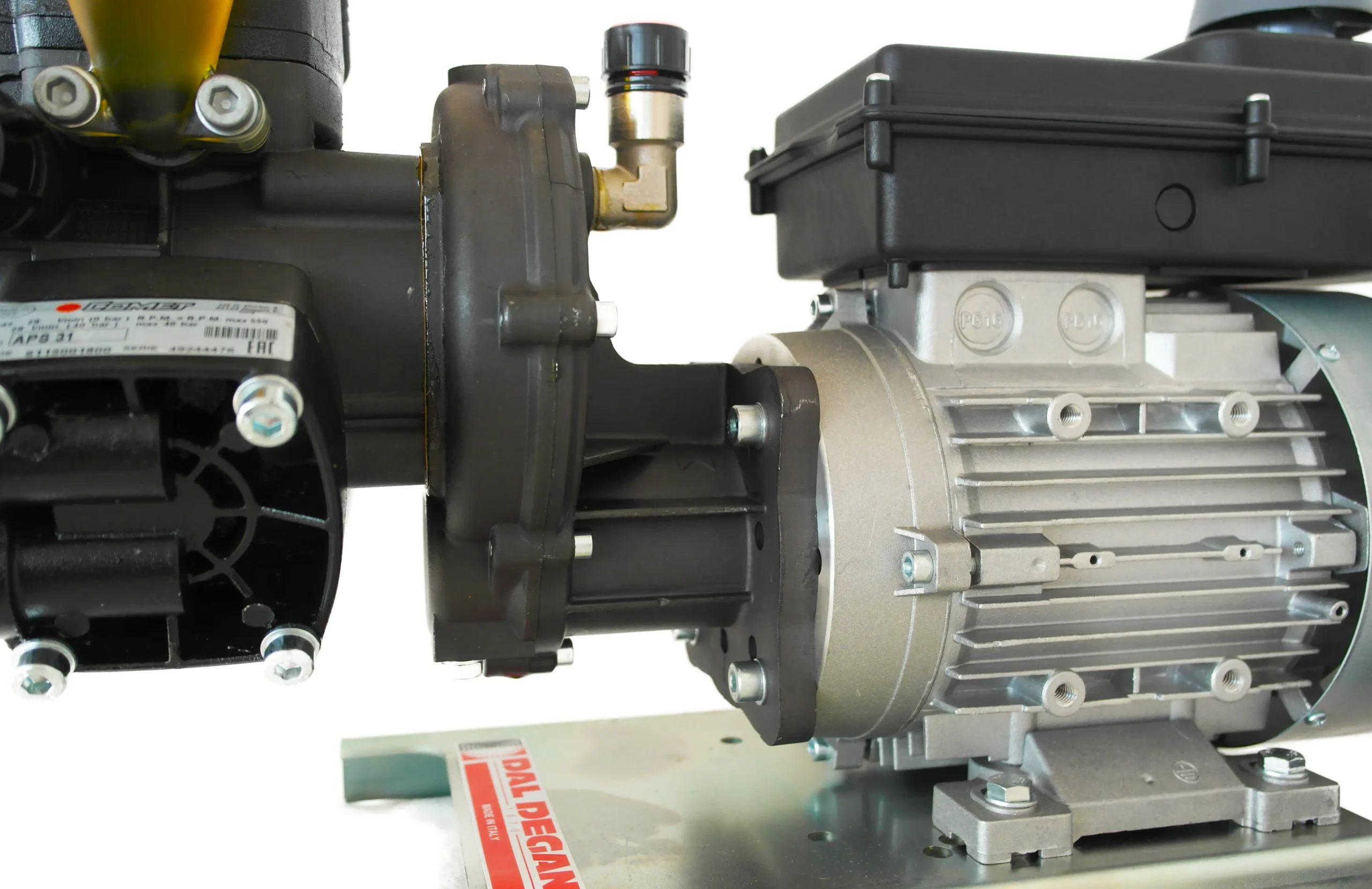

ENGINE-PUMP TRANSMISSION	DIRECT FLANGE MOUNTING WITH OIL BATH MULTIPLIER
PRESSURE REGULATOR	SEMI-PROFESSIONAL, FROM 0 TO 30 BAR

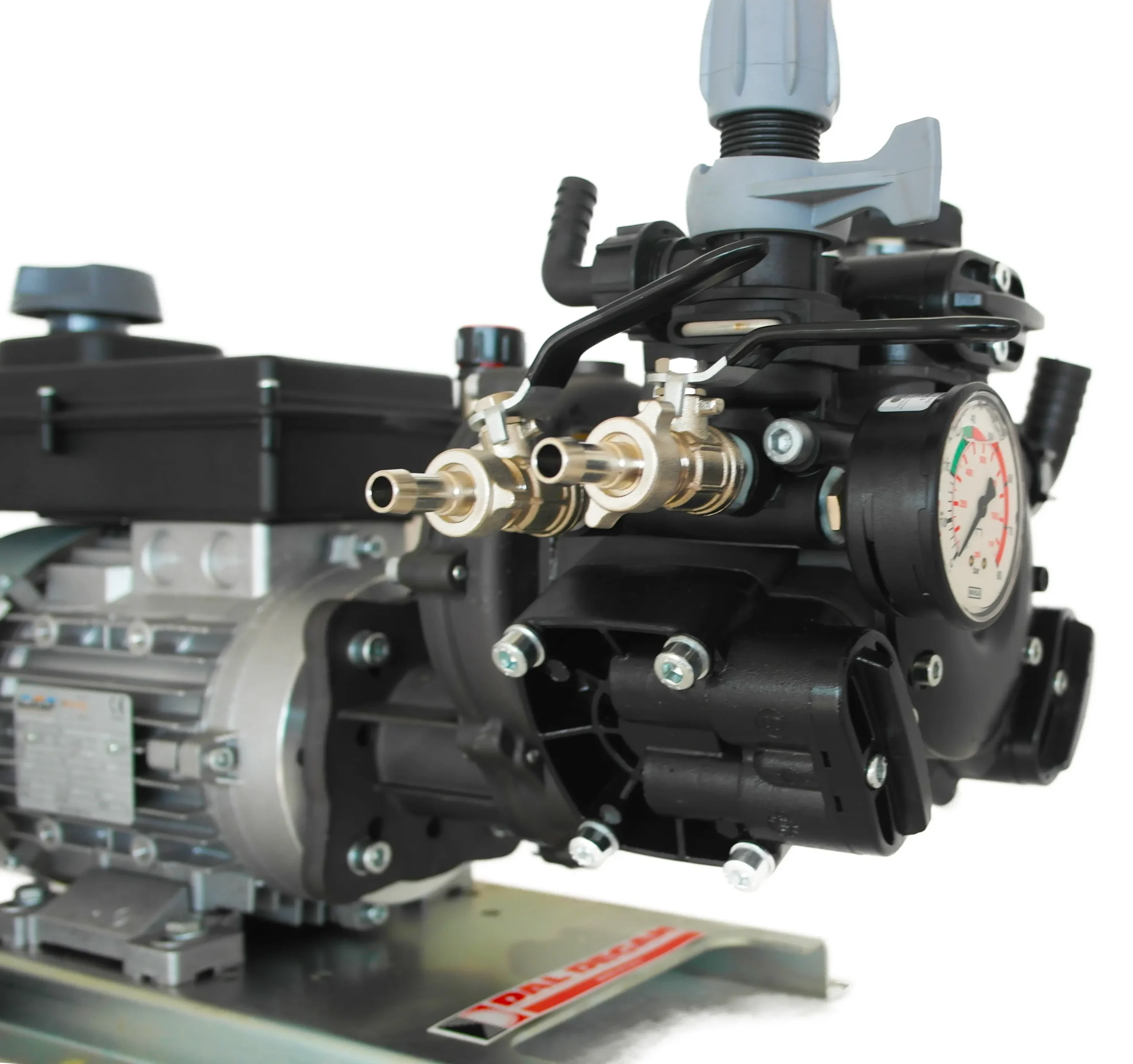

STANDARD OUTLETS	2 (with provision for third outlet)
OVERFLOW FITTING	YES, FOR RETURN TO TANK AND MIXING
BASE	WIDE METAL BASE WITH VARIOUS HOLES FOR APPLICATIONS
ELECTRICAL BOX	PROFESSIONAL WITH POWER BUTTON
DIMENSIONS	61 x 38 x 37 cm
NET WEIGHT	42 kg
COUNTRY OF MANUFACTURE	ITALY
EQUIPMENT	INSTRUCTION MANUAL
CONFIGURATION	READY TO CONNECT, SUPPLIED ASSEMBLED

Benefits

Three diaphragms: smooth delivery, less pulsation, longer life
Professional power: 2 HP for continuous pressure up to 30 bar
Dual outlet as standard with provision for third: simultaneous work of multiple operators
Versatility of use: up to 3 manual lances, 2 professional lances, 1 Mitra, 3+3 side booms
Professional electric motor: zero maintenance, low operating costs, silent
No combustion engine: zero emissions, ideal for indoor environments and urban settings
Oil-bath transmission: constant lubrication, superior transmission life
Quickly inspectable stainless steel valves: simplified maintenance
Overflow fitting: continuous mixing of product in tank
Wide, perforated metal base: can be installed on carts, wheelbarrows, beds, or fixed systems
Entirely Italian Comet production: reliability, widely available spare parts
Supplied assembled and ready to use: regulation unit connection with 2 screws
