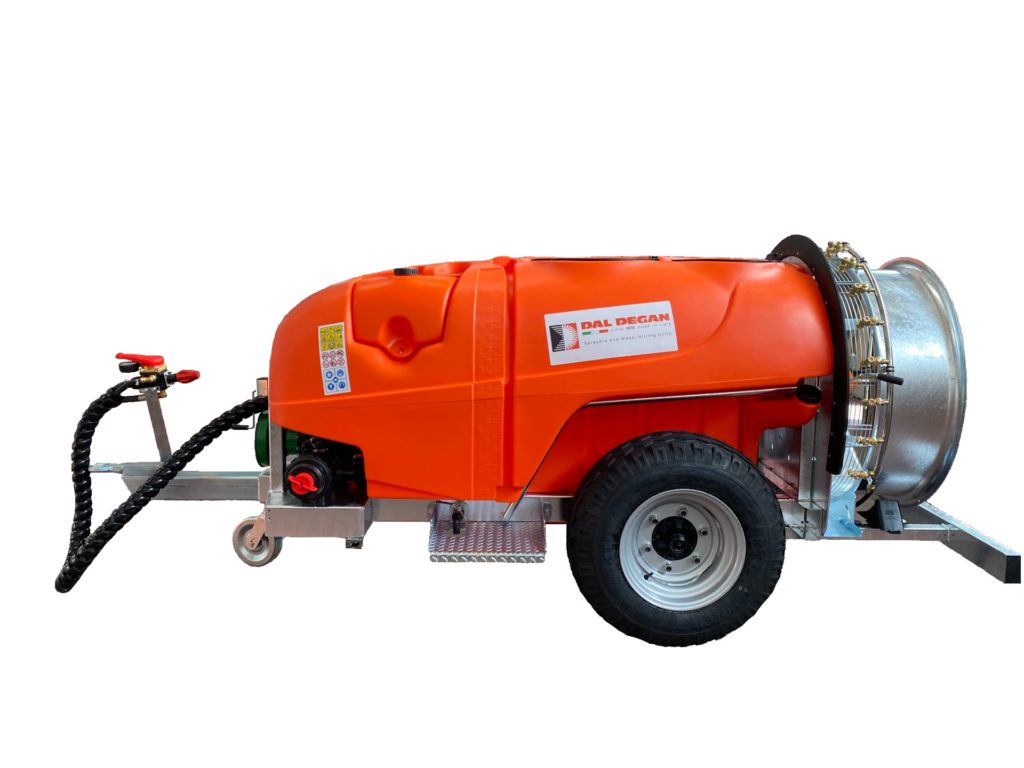

NETTUNO - TRAILED ATOMIZER

600 - 800 - 1000 - 1500 - 2000 L

Trailed sprayer with hot galvanized frame, main polyethylene tank with hand wash and system washer. COMET diaphragm pump as standard. Wheel axle and rudder adjustable at will. The eight-blade fan unit with lining clutch Ø700 / 800/900 mm is hot galvanized and equipped with an oil bath gear multiplier. The rear bumper to protect the conveyor is standard. The jet holder rods are in stainless steel with double adjustable anti-drop brass jets. Hydraulic agitator. Three-way diverter valve for system washing insertion.

FIELDS OF APPLICATION

Agricultural crops
Citrus orchards
Orchards
Vineyards
Olive groves
Tall plants

TECHNICAL DATA

TANK MATERIAL POLYETHYLENE PUMP MEMBRANE PERFORMANCES 88-115-142 L / min CONVEYOR Ø 700/800/900 AIR INTAKE REAR MINIMUM POWER 60 HP FRAME AND CONVEYOR GALVANIZED STEEL

WHY TO CHOOSE NETTUNO

Latest generation technologies
Liquid capacity up to 2000L
Extended in-cab controls available
High technology, computers, sensors and electronic control units available on request
High volume of air even at low speeds
Reduced noise
High efficiency variable pitch impeller / propeller
Ease of use
High quality of materials
Wide choice of options
